标准磁铁

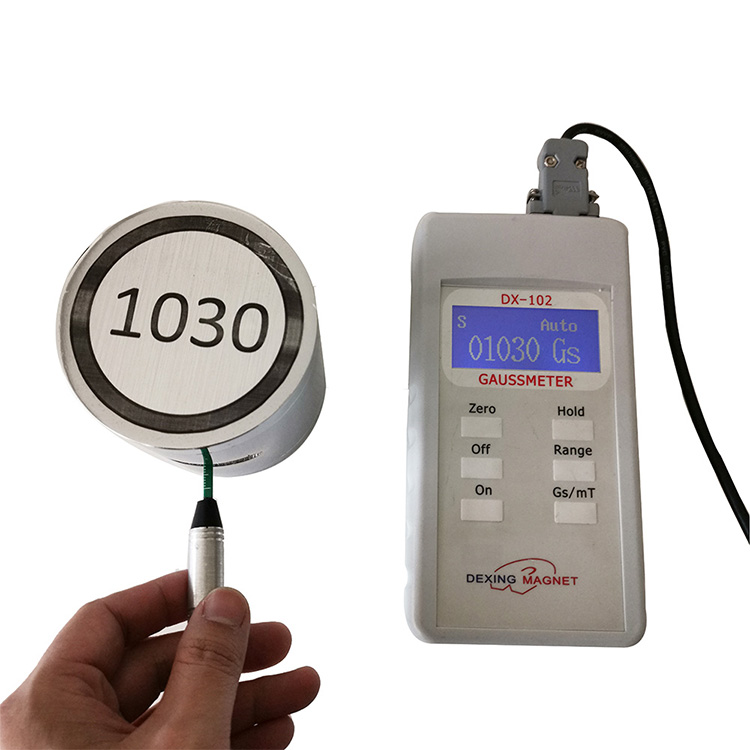

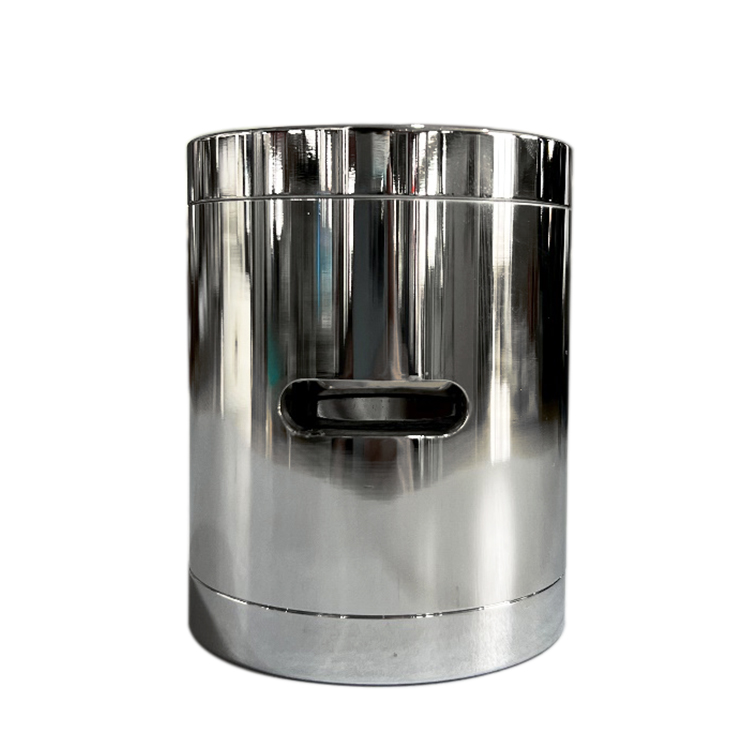

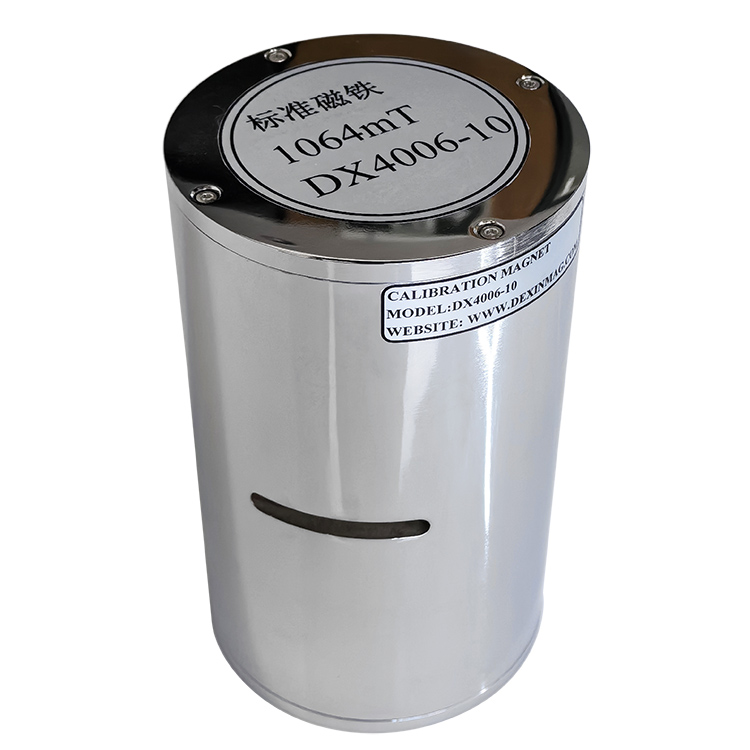

标准磁体是专为霍尔片标定设计的永久磁铁，体积小重量轻，适合标定0.1%~1%精度的霍尔片，常规磁场等级0.1T~1.1T阶段可选，现货供应；最高磁场可达3.0T。
标定永磁体规格参数
|
Model
型号
|
Pole Face Diameter
极面直径
(mm)
|
Air gap
磁场气隙
(mm)
|
Magnetic field
in the center
中心磁场 (T)
|
Dimension of
uniform field
均匀区 (mm)
|
Uniformity
均匀度
(H/H)
|
Shape
外形尺寸
(mm)
|
Weitht
重量
(Kg)
|
| DX4010-01 | 40 | 10 | 0.1 | Φ6*6 | 0.001 | Φ82x102 | 3 |
| DX4010-02 | 40 | 10 | 0.2 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4010-03 | 40 | 10 | 0.3 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4010-04 | 40 | 10 | 0.4 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4010-05 | 40 | 10 | 0.5 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4010-06 | 40 | 10 | 0.6 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4010-07 | 40 | 10 | 0.7 | Φ6*6 | 0.001 | Φ84x102 | 3 |
| DX4008-08 | 40 | 8 | 0.8 | Φ6*6 | 0.001 | Φ84x115 | 4 |
| DX4006-09 | 40 | 6 | 0.9 | Φ6*6 | 0.001 | Φ82x136 | 5 |
| DX4006-10 | 30 | 6 | 1 | Φ5*5 | 0.001 | Φ82x136 | 5 |
| DX4006-11 | 30 | 6 | 1.1 | Φ5*5 | 0.001 | Φ82x136 | 5 |
…………
